    Üretici: MICROCHIP

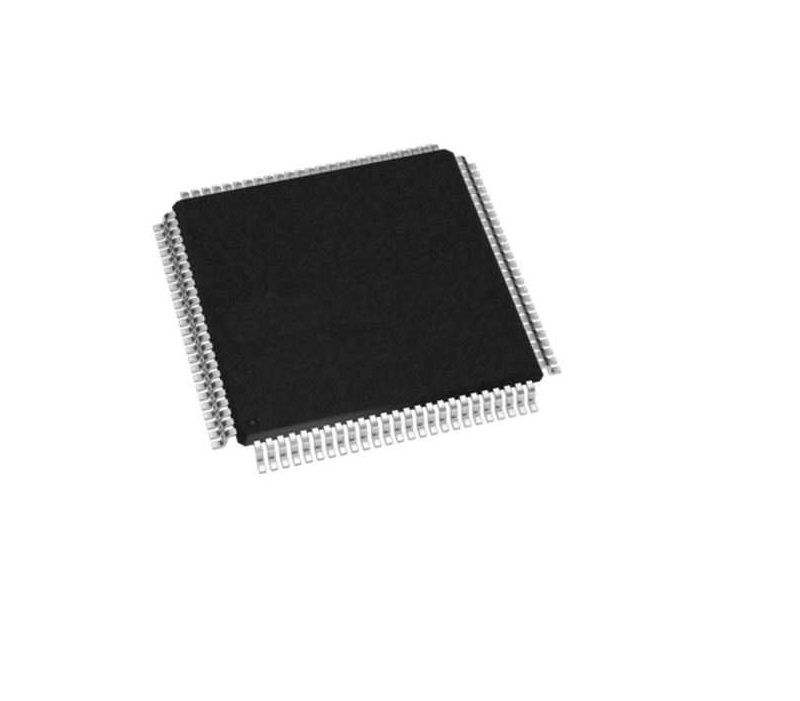

    Pic24fj256da210-I/Pt

    Bu ürünü ilk yorumlayan siz olun
    $8.50 KDV Dahil
    $10.50 KDV Dahil
    Ic Mcu 16Bit 256Kb Flash 100Tqfp
    Stok Kodu: 00-179-02-0006
    Stok Durumu: Stokta var
    CPU Type16-bit PIC MCU
    CPU Speed Max MHz (megahertz)16
    Program Memory Size (KB)256
    Multiple Flash PanelsFalse
    Direct Memory Access (DMA) Channels2
    Temp. Range Min.(C°)-40
    Temp. Range Max.(C°)85
    Operation Voltage Min.(V)02.Şub
    Operation Voltage Max.(V)03.Haz
    Pin Count100
    Low PowerNo
    Number of Comparators3
    ADC Modules1
    ADC Channels24
    ADC Resolution Max10
    ADC Sampling Rate (ksps)500
    Number of DACs0
    DAC outputs0
    Max DAC Resolution (bits)0
    Hardware RTCCNo
    Motor Control PWM Channels0
    SMPS PWM Channels0
    Number of PWM Time Bases9
    Output Compare Channels9
    USB InterfaceFS Device/Host/OTG
    Number of CAN Modules0
    Type of CAN module MaxNone
    Crypto EngineNo
    Quadrature Encoder Interface (QEI)0
    Segment LCD0
    LCD/Graphics InterfaceYes
    Configurable Logic Cell Modules (CLC /CCL)0
    Peripheral Pin Select (PPS)/Pin MuxingYes
    Supported in MPLAB Code ConfiguratorYes
    Kendi görüşünü yaz
    • Sadece kayıtlı kullanıcılar yorum yazabilir
    *
    *
    • Kötü
    • Mükemmel
    *
    *
    *
    CPU Type16-bit PIC MCU
    CPU Speed Max MHz (megahertz)16
    Program Memory Size (KB)256
    Multiple Flash PanelsFalse
    Direct Memory Access (DMA) Channels2
    Temp. Range Min.(C°)-40
    Temp. Range Max.(C°)85
    Operation Voltage Min.(V)02.Şub
    Operation Voltage Max.(V)03.Haz
    Pin Count100
    Low PowerNo
    Number of Comparators3
    ADC Modules1
    ADC Channels24
    ADC Resolution Max10
    ADC Sampling Rate (ksps)500
    Number of DACs0
    DAC outputs0
    Max DAC Resolution (bits)0
    Hardware RTCCNo
    Motor Control PWM Channels0
    SMPS PWM Channels0
    Number of PWM Time Bases9
    Output Compare Channels9
    USB InterfaceFS Device/Host/OTG
    Number of CAN Modules0
    Type of CAN module MaxNone
    Crypto EngineNo
    Quadrature Encoder Interface (QEI)0
    Segment LCD0
    LCD/Graphics InterfaceYes
    Configurable Logic Cell Modules (CLC /CCL)0
    Peripheral Pin Select (PPS)/Pin MuxingYes
    Supported in MPLAB Code ConfiguratorYes
